In the realm of precision engineering and manufacturing, the granite surface plate stands as an indispensable tool. Renowned for its exceptional flatness and stability, it serves as a fundamental reference surface in various industrial applications. This article delves deep into the multifaceted uses of granite surface plates, exploring their role in ensuring accurate measurements, the science behind their material properties, and their significance in modern manufacturing processes.
Granite surface plates, sometimes referred to as granite inspection tables, are essential in environments where precision is paramount. They provide a stable, flat base for precision measurement tools and instruments, enabling manufacturers to maintain tight tolerances and high-quality standards. The use of granite, a naturally occurring material with unique properties, ensures that these surface plates offer durability and long-term accuracy.
At the heart of precision measurement lies the concept of flatness. A truly flat surface is essential for accurate dimensional measurements, as it provides a consistent reference plane from which all measurements are taken. Any deviation in this plane can introduce errors, compromising the integrity of the measurements and, ultimately, the quality of the manufactured components. Granite surface plates excel in providing this flatness, owing to their meticulous manufacturing process and inherent material stability.
Granite is selected for surface plates due to its robust physical properties. It possesses a low coefficient of thermal expansion, meaning it does not expand or contract significantly with temperature fluctuations. This thermal stability ensures that granite measuring platforms maintain their flatness and accuracy even in varying environmental conditions.
Moreover, granite is hard and wear-resistant. Its wear resistance prolongs the surface plate's lifespan, maintaining its precision over extended periods. Unlike metal surface plates, granite does not burr or deform easily, which is crucial for maintaining the accuracy of the surface plane. The density and rigidity of granite also contribute to dampening vibrations, which can affect sensitive measurements.
Granite surface plates are utilized across various industries, serving numerous functions that are critical to manufacturing and quality control processes. Their applications can be broadly categorized into measurement, inspection, calibration, and assembly support.

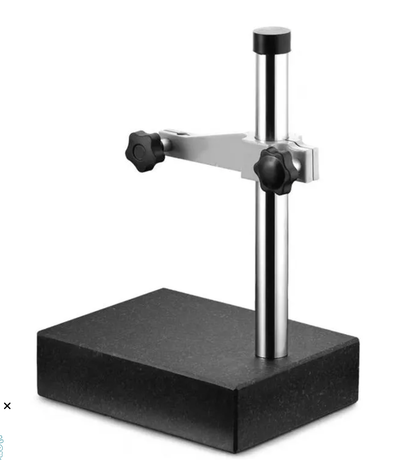

In precision measurement, granite surface plates provide the foundational reference surface for instruments like dial indicators, height gauges, and coordinate measuring machines (CMMs). By ensuring that the base surface is perfectly flat, these instruments can accurately measure the dimensions and geometries of components. This is particularly important in industries such as aerospace and automotive manufacturing, where components must meet stringent dimensional specifications.
Inspection processes rely heavily on granite surface plates to detect deviations in flatness, parallelism, and perpendicularity of machined parts. Surface plates facilitate the use of optical comparators and other inspection devices, which can be set up directly on the plate's surface. The granite's stability ensures that readings are accurate and repeatable.
Regular calibration of measuring instruments is essential to maintain accuracy in measurements. Granite surface plates are used as the reference standard during the calibration process. Instruments such as micrometers, calipers, and gauges are checked against the flat surface to ensure they provide accurate readings. The reliability of the granite surface plate ensures that any discrepancies detected are due to instrument error rather than an irregular reference surface.
Beyond measurement and inspection, granite surface plates serve as assembly platforms where precise alignment is necessary. Components can be aligned and assembled directly on the plate, benefiting from the flat and stable surface. This is crucial in the production of precision machinery and equipment, where even minor misalignments can lead to significant performance issues.
In layout work, granite surface plates are used to mark out components before machining. The flat surface allows for accurate scribing and marking, ensuring that the material removal processes are executed correctly. This reduces waste and enhances the efficiency of manufacturing operations.
The precision of granite surface plates can diminish over time due to wear and environmental factors. Regular calibration and proper maintenance are essential to preserve their accuracy. Calibration involves checking the flatness of the surface plate and correcting any deviations. It is recommended that surface plates undergo calibration at least once a year, though more frequent calibration may be necessary in high-use environments.
Calibration of granite surface plates is typically performed using high-precision instruments such as electronic levels, autocollimators, or laser interferometers. These instruments detect minute deviations in flatness across the surface. The calibration process may involve resurfacing the plate through lapping, a process that restores the plate's flatness by removing material from high spots.
Engaging professional calibration services ensures that the surface plate meets industry standards. Companies specializing in calibration, like those providing granite inspection tables, offer expertise and equipment to accurately assess and restore surface plates.
Proper care extends the life of granite surface plates and maintains their precision. Key maintenance practices include:
Regular Cleaning: Dust and debris can affect measurements. Clean the surface with a soft, lint-free cloth and a recommended cleaner.
Protective Covering: Use a cover when the plate is not in use to prevent contaminants from settling on the surface.
Even Usage: Utilize the entire surface area to prevent localized wear. Rotating the plate periodically can also promote even wear.
Avoid Overloading: Do not exceed the weight capacity of the plate to prevent warping or damage.
Temperature Control: Maintain a stable environment to minimize thermal expansion effects.
While surface plates can be made from various materials, granite offers several advantages over alternatives like cast iron and glass.
Cast iron surface plates were historically common but have been largely supplanted by granite due to several drawbacks. Cast iron is susceptible to rust and corrosion, requiring constant maintenance. It also has a higher thermal expansion coefficient, making it more sensitive to temperature changes, which can affect flatness. Additionally, cast iron can develop burrs and scratches more easily, compromising the reference surface.
Granite, in contrast, is naturally rust-resistant and maintains its flatness better under varying temperatures. Its non-magnetic properties are advantageous in environments where magnetic interference is a concern. The hard surface of granite resists scratches and wear, ensuring longevity and sustained accuracy.
Glass and ceramic plates offer some benefits, such as lightweight and corrosion resistance. However, they are more fragile and can break or chip more easily than granite. While ceramics can provide high degrees of flatness, their brittleness limits their use in heavy-duty industrial applications. Granite strikes a balance between hardness, durability, and practicality, making it the preferred choice for most precision applications.
In today's manufacturing landscape, precision is more critical than ever. Advanced technologies such as CNC machining, additive manufacturing, and micro-fabrication demand exacting standards. Granite surface plates provide the foundational accuracy required for these technologies to function optimally.
Quality control processes rely on precise measurements to verify that components meet design specifications. Granite surface plates are central to these processes, enabling inspectors to detect deviations and ensure compliance with quality standards. In industries where safety is paramount, such as aerospace and medical device manufacturing, the assurance provided by accurate measurements is invaluable.
As manufacturing technologies advance, the requirements for measurement precision tighten. Granite surface plates support these advancements by providing a reliable reference surface that can accommodate the high sensitivities of modern instruments. For example, in the calibration of laser measurement systems or optical equipment, the stability and flatness of the granite surface are crucial.

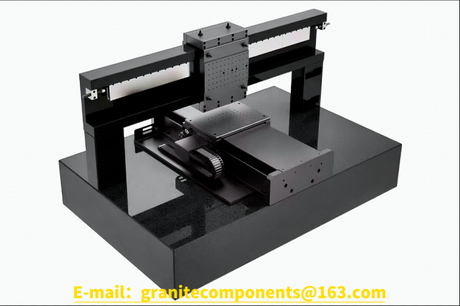

Additionally, the integration of automation and robotic systems in manufacturing necessitates precise setups. Granite surface plates provide the stable platforms required for these systems to operate accurately, ensuring repeatability and consistency in production processes.
Granite surface plates are not limited to standard sizes and configurations. Manufacturers often require customized solutions to meet specific application needs. Modifications can include the addition of threaded inserts, T-slots, and through-holes to facilitate the mounting of equipment or fixtures.
Companies specializing in granite products can provide these customizations, tailoring the surface plates to integrate seamlessly with existing systems or to support specialized equipment. This adaptability enhances the utility of granite surface plates across diverse industrial settings.

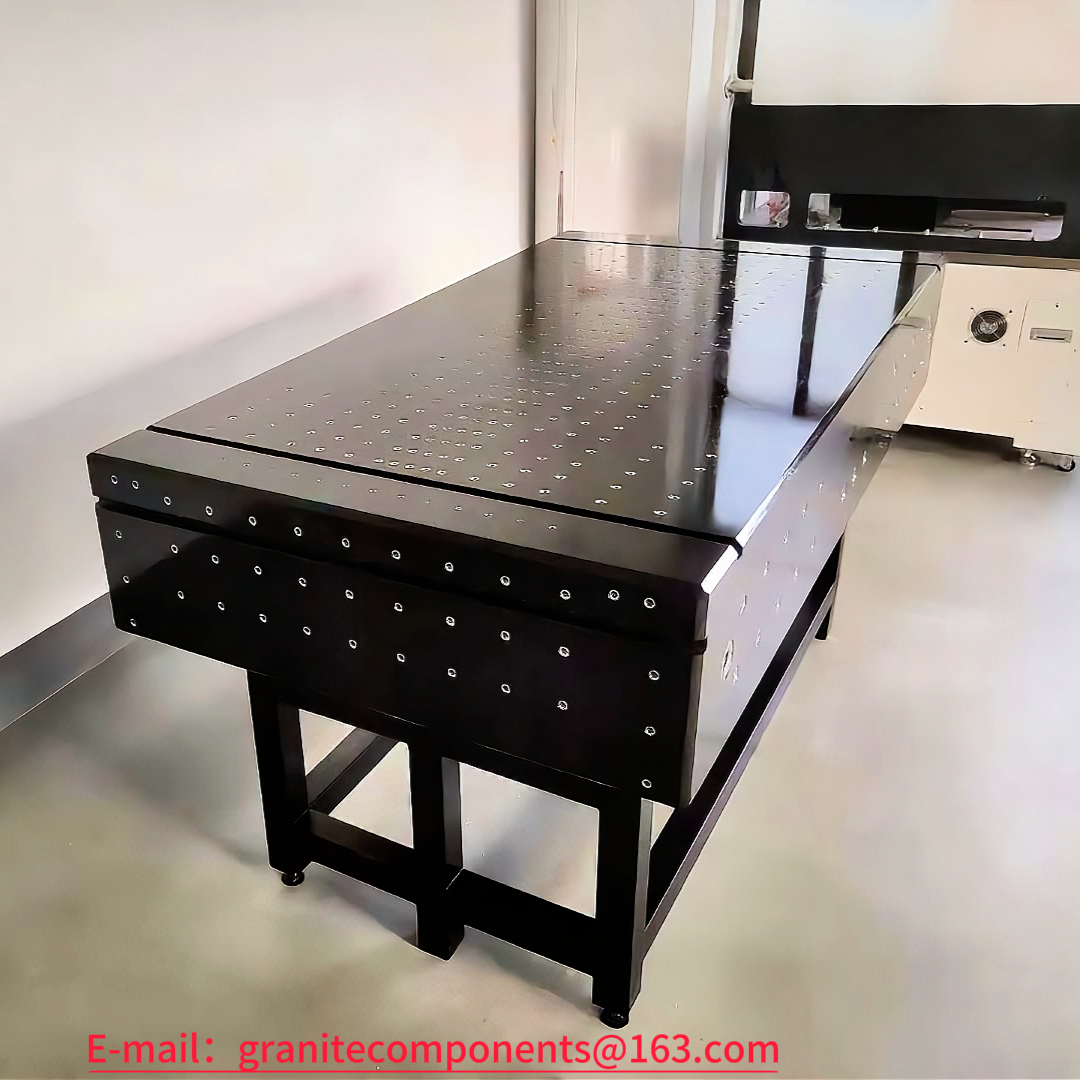

In the field of optics and electronics, granite surface plates, including the granite optical platform, are used extensively. The inherent vibration-dampening properties of granite make it ideal for supporting sensitive optical equipment. These platforms minimize external vibrations that can interfere with measurements or operations of optical instruments like lasers and interferometers.
In electronics manufacturing, granite surfaces provide an ESD-safe environment, crucial for handling components sensitive to electrostatic discharge. The non-conductive nature of granite helps prevent damage to electronic components during assembly and testing.
Granite surface plates are a cornerstone of precision in manufacturing and engineering. Their exceptional flatness, stability, and durability make them invaluable tools for measurement, inspection, calibration, and assembly. By providing a reliable reference surface, they enable manufacturers to produce components that meet exacting standards and function as intended.
The use of granite as the material of choice is testament to its superior properties that align with the demands of modern industry. Proper care, regular calibration, and understanding their applications ensure that granite surface plates remain an integral part of precision engineering processes. As technology continues to advance, these plates will continue to play a critical role in supporting innovations and maintaining the highest levels of quality and accuracy.
Granite is preferred due to its superior hardness, low thermal expansion, and resistance to corrosion. These properties ensure that granite surface plates maintain their flatness and accuracy over time. Unlike cast iron, granite does not rust or burr, and its non-magnetic nature makes it suitable for various precision applications.
The frequency of calibration depends on the usage and environment. Generally, it is recommended to calibrate granite surface plates at least once a year. In high-use or critical applications, calibration every six months ensures sustained accuracy and early detection of wear or damage.
Yes, minor surface damage such as scratches or small chips can often be repaired through resurfacing processes like lapping. Professional calibration services can assess the extent of damage and restore the plate to its required flatness specifications.
Granite surface plates should be used in temperature-controlled environments to minimize thermal expansion effects. They should also be protected from excessive humidity and contaminants. Proper environmental controls help maintain the plate's accuracy and longevity.
They provide a stable and accurate reference surface for measurements and inspections. This allows for the detection of dimensional deviations in manufactured components, ensuring that products meet quality standards and function as intended.
Yes, granite surface plates are classified into different grades based on their flatness tolerances. Common grades include Grade AA (laboratory), Grade A (inspection), and Grade B (shop). The selection of grade depends on the required precision for specific applications.
Absolutely, granite surface plates can be customized with features like threaded inserts, T-slots, and specific dimensions to suit particular needs. Customization enhances their functionality, allowing integration with specialized equipment or fixtures.
