Have you ever wondered how engineers and machinists get those super precise measurements down to the thousandth of an inch? Well, the secret often lies in a tool called the micrometer. While this tool might look simple at first glance, mastering how to read a micrometer in inches can be a bit tricky—especially if you're new to precision measuring.
Don’t worry though, we’ve got you covered! In this guide, we’ll walk you through the basics of using a micrometer, explain how to read it accurately, and give you a few handy tips and tricks to avoid common mistakes. Along the way, we’ll also dive into the importance of tools like the Granite Measuring Platform, which can make a huge difference in achieving ultra-precise readings.
By the end of this article, you'll feel confident reading a micrometer in inches and be well on your way to taking your measuring game to the next level!
Picture this: you’re working on a high-precision project, and every detail needs to be perfect. Whether you're creating parts for a machine, inspecting precision components, or assembling complex devices, one thing is certain—accurate measurements are a must. This is where a micrometer comes in.
A micrometer is a small but incredibly accurate measuring tool used to measure the dimensions of an object, usually in millimeters or inches. Unlike rulers or tape measures, which can be used for general measurements, micrometers are designed for extreme precision—typically down to one thousandth of an inch (0.001").
The precision micrometer gives you the ability to measure small objects like the thickness of a metal plate, the outer diameter of a rod, or even the internal diameter of a pipe. This level of accuracy is crucial in fields like mechanical engineering, manufacturing, and quality control. By using a micrometer, you ensure that parts fit together exactly as they should, preventing any assembly issues down the line.
Before diving into the intricacies of how to use a micrometer, it's important to familiarize yourself with its parts. Though it may look complicated, a micrometer is made up of only a few simple components. Here are the main parts you'll need to know:
Part | Description |
Anvil | The fixed part of the micrometer against which the object to be measured is placed. |
Spindle | The moving part that slides towards the anvil to measure the object. |
Thimble | The cylindrical part that rotates to advance the spindle for fine adjustments. |
Sleeve | The stationary part of the micrometer that holds the scale for measurement. |
Together, these parts help you take an accurate reading. The key to getting the correct measurement is ensuring that the spindle moves smoothly towards the anvil and the object being measured is perfectly aligned.
Not all micrometers are created equal! Depending on the task at hand, you'll want to choose a specific type of micrometer:
Micrometer Type | Use Case |
Outside Micrometers | For measuring the external dimensions of objects like rods, wires, and metal sheets. |
Inside Micrometers | For measuring the internal dimensions of an object, such as the internal diameter of a hole or pipe. |
Depth Micrometers | For measuring the depth of grooves, slots, and other recesses. |
Each type is designed with a specific measurement task in mind, so understanding which one to use for your job is key to getting accurate results. Using the wrong type of micrometer can lead to errors, so always double-check the type you need!
Before you can take any measurements, it’s crucial to set your micrometer to zero. Calibration ensures that you're starting from a known reference point, and it’s one of the first things you should do before using the micrometer.
To calibrate the micrometer, close the spindle and anvil around a standard measuring tool (or the micrometer’s measuring faces). Adjust the thimble or sleeve to ensure the reading is exactly zero. If it’s not, you’ll need to make an adjustment.
Zeroing your micrometer is an essential step to ensure accuracy. Even a slight miscalibration can throw off all subsequent measurements, so take the time to do it correctly.
Now that your micrometer is calibrated, you’re ready to take your first measurement! Here’s a step-by-step guide to measuring small objects accurately:
Step | Action |
1. Position the Object | Place the object to be measured between the anvil and the spindle, ensuring it’s aligned straight and perpendicular to the measuring faces. |
2. Apply Consistent Pressure | Slowly rotate the thimble to advance the spindle towards the object. Make sure to apply uniform pressure to avoid over-tightening. |
3. Read the Measurement | Once the object is securely in place, read the measurement from the micrometer. Combine the readings from the main scale and the thimble scale. |
By following these steps, you’ll achieve consistent and accurate readings every time. Be patient and steady while turning the thimble—precision takes time.
A micrometer typically uses two scales to display the measurement: the main scale and the thimble scale. Here’s how to read them:
Scale Type | What it Represents |
Main Scale | The larger measurement (usually in inches or millimeters). It provides the full inch (e.g., 0.250 inches). |
Thimble Scale | The smaller increments, often to thousandths of an inch (e.g., 0.003 inches). |
To get the full measurement, simply add the readings from both scales. For example, if the main scale reads 0.250 inches and the thimble scale reads 0.003 inches, the total measurement would be 0.253 inches.
Micrometers are incredibly precise, but even small errors can lead to big discrepancies. Here are a few common mistakes to watch out for:
Mistake | How to Avoid It |
Too Much Pressure | Don’t over-tighten the spindle. Use the ratchet stop to apply consistent pressure. |
Misalignment | Ensure the object is perfectly aligned with the anvil. Any tilt or skew will result in an inaccurate reading. |
Parallax Error | Always read the scale at eye level to avoid distorting the reading. |
By being mindful of these issues, you can prevent inaccuracies and ensure your measurements are spot-on.

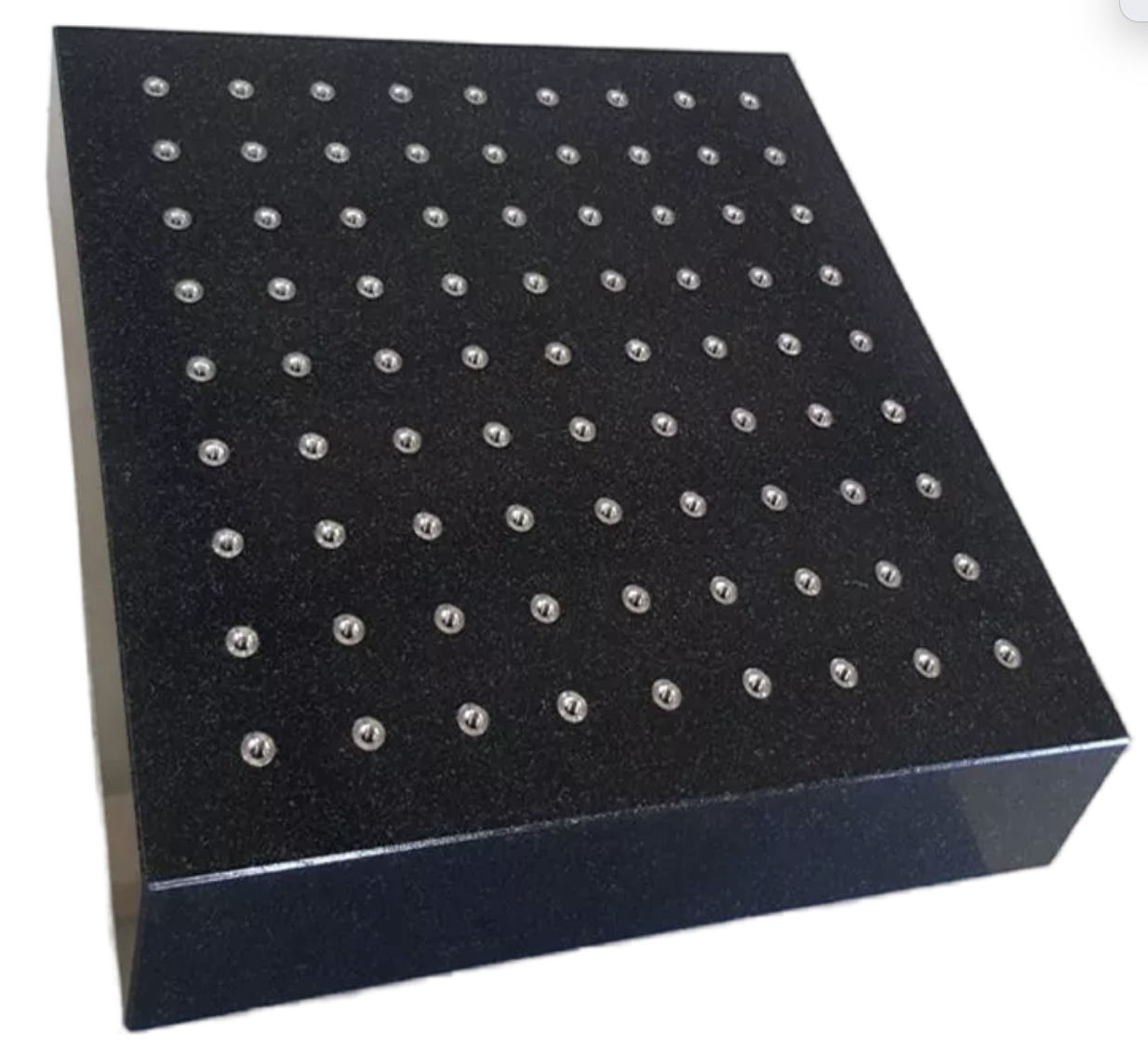

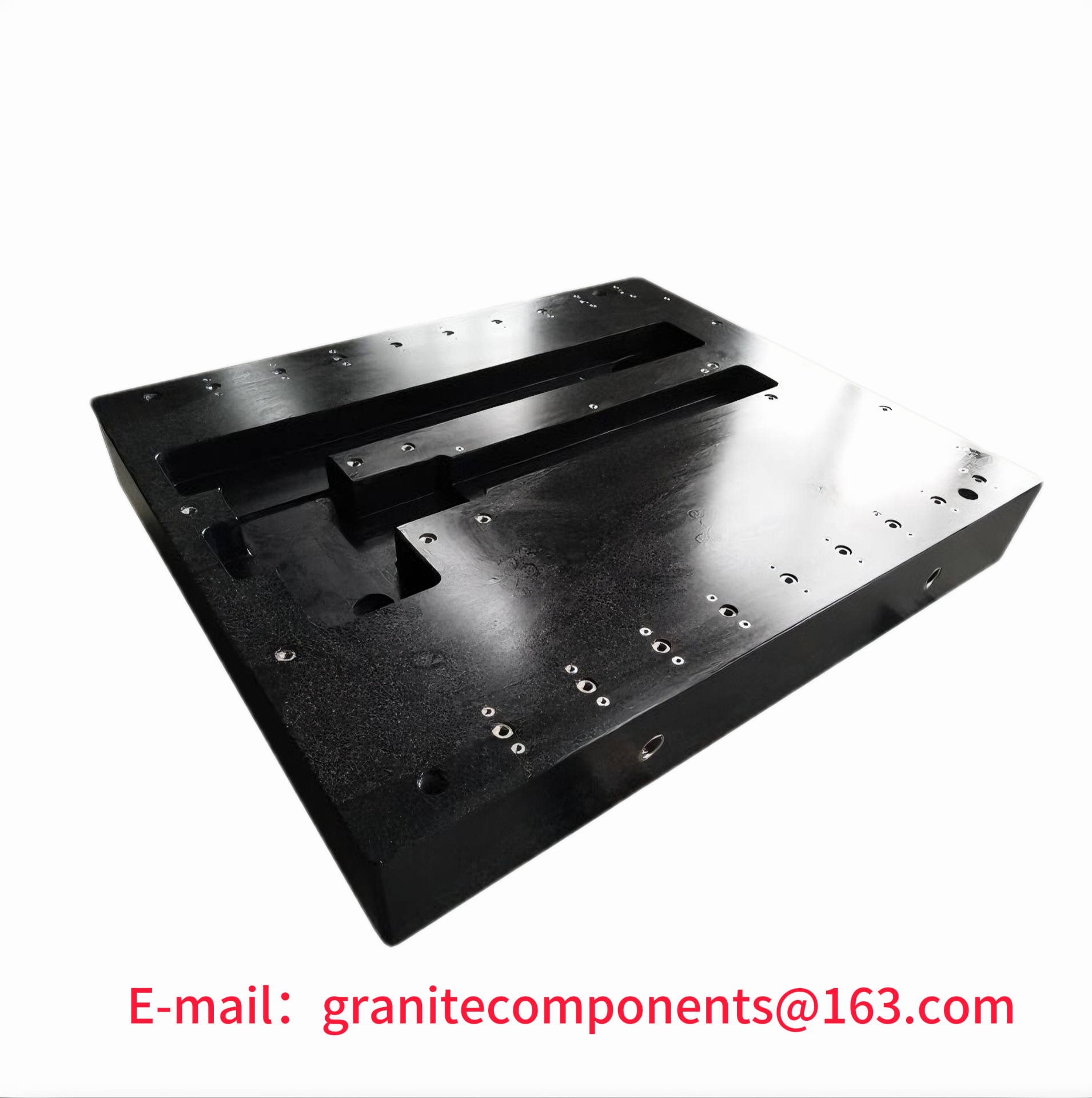

When precision matters, using a stable and level surface is crucial. This is where a Granite Measuring Platform comes in. A granite platform is a flat, stable surface that ensures accuracy by minimizing any potential for errors caused by uneven surfaces.
Granite is an ideal material for a measuring platform because of its high durability, natural flatness, and resistance to wear. In fact, granite is one of the most widely used materials for metrology applications, including micrometer measurements, due to its ability to stay perfectly level and provide a reliable reference point for measuring objects.
By placing your micrometer on a Granite Measuring Platform, you’re ensuring that the measuring tool remains stable and level, which in turn leads to more accurate readings.
To get the most out of your micrometer and granite platform, follow these steps for proper setup:
1. Clean the Platform: Before starting, make sure the granite platform is free of dust, dirt, or debris. Even small particles can affect the measurement.
2. Check for Level: The platform should be perfectly level. Use a level gauge to ensure there is no tilting that could throw off your measurements.
3. Place the Micrometer: Set the micrometer on the granite platform, ensuring it is aligned properly. The tool should be stable and not shift or wobble during measurement.
Using a granite platform ensures your micrometer has a stable, flat surface to work with, minimizing any potential errors that may arise from a less stable measuring setup.
The Granite Measuring Platform offers several key benefits, including:
Benefit | Explanation |
Flatness | Granite surfaces are incredibly flat, ensuring the micrometer is positioned on a perfectly level surface. |
Stability | Granite is resistant to vibrations, making it a stable base for taking micrometer readings. |
Durability | Granite is tough and resistant to wear, meaning it won’t degrade or shift over time. |
By pairing your micrometer with a Granite Measuring Platform, you’ll ensure that your readings are as accurate as possible, every time.
Accuracy is all about consistency. To get the most reliable measurements, follow these tips:
● Apply Steady Pressure: Always use the ratchet stop to apply consistent pressure when taking measurements. This helps prevent over-tightening or under-tightening.
● Use Multiple Measurements: For even greater accuracy, take several measurements of the same object and calculate the average. This helps account for any small variations or inconsistencies.
● Be Patient: Take your time when reading the micrometer. Precision takes focus and care—don’t rush!
Temperature plays a significant role in micrometer readings. Materials expand and contract based on temperature, which can affect the dimensions you’re measuring. To reduce the impact of temperature changes, try to measure in a controlled environment where temperature is stable.
If temperature changes are unavoidable, be sure to account for the potential expansion or contraction of materials by adjusting your readings accordingly.
To ensure your micrometer continues to provide accurate measurements over time, regular maintenance is essential. Here’s how to keep your micrometer in top shape:
● Clean Regularly: After each use, clean your micrometer to prevent dirt or oil buildup.
● Check for Wear: Look for any signs of wear on the spindle, anvil, or thimble. Replace worn parts as necessary to maintain accuracy.
● Calibrate Periodically: Even if you’re not noticing issues, it’s a good practice to calibrate your micrometer regularly to ensure it stays accurate.
With proper care, your micrometer can serve you well for years, providing reliable measurements each time.
Over time, your micrometer may show signs of wear, particularly on the spindle or anvil. This can result in inaccurate readings. If you notice any wear or damage, consider recalibrating the tool or replacing any worn parts.
If you’re getting inconsistent readings, it could be due to a number of factors. Check the micrometer for calibration issues, misalignment, or debris between the measuring faces. Sometimes, a simple cleaning can solve the problem!
To avoid misreadings, always double-check the alignment of the object being measured, ensure the micrometer is clean, and be sure to use the ratchet stop for consistent pressure.
In this guide, we explored how to read a micrometer in inches, covering essential techniques and tips for accuracy. We discussed the importance of proper calibration, the significance of using a Granite Measuring Platform, and the different types of micrometers. For anyone working with high-precision measurements, understanding these fundamentals ensures reliability in every reading. SYIN Automation Technology Co., Ltd offers top-quality measuring solutions, including precision Granite Measuring Platforms, which enhance measurement accuracy and ensure consistent performance in professional environments.
Tip: For professionals working with micrometers, using a Granite Measuring Platform such as the Granite Metrology 500x500 ensures a stable and flat surface, which improves measurement accuracy and consistency, ultimately leading to more reliable results in high-precision projects.
A: To read a micrometer in inches, align the object between the anvil and spindle, then use the main scale for the bulk measurement and the thimble scale for finer increments. For added precision, use a Granite Measuring 300x200 platform to ensure a stable and level surface.
A: A Granite Measuring Platform provides a flat, stable surface, eliminating surface imperfections and ensuring precise readings. This reduces measurement errors caused by unstable surfaces, especially when using micrometers to measure small, high-precision components.
A: The Granite Metrology 500x500 platform offers exceptional flatness and durability, which ensures that micrometer calibrations are more accurate, leading to better consistency in measurements. This is crucial for high-precision applications.
A: Yes! A Black Granite 1m Platform provides a larger, stable measuring surface that helps maintain a level position for the micrometer, improving the accuracy of your readings and reducing errors in precision measurement tasks.
A: Temperature can cause materials to expand or contract, affecting micrometer measurements. Using a Granite Flat 300mm Square platform ensures that temperature fluctuations have minimal effect on the micrometer’s readings, as granite remains stable under various conditions.
