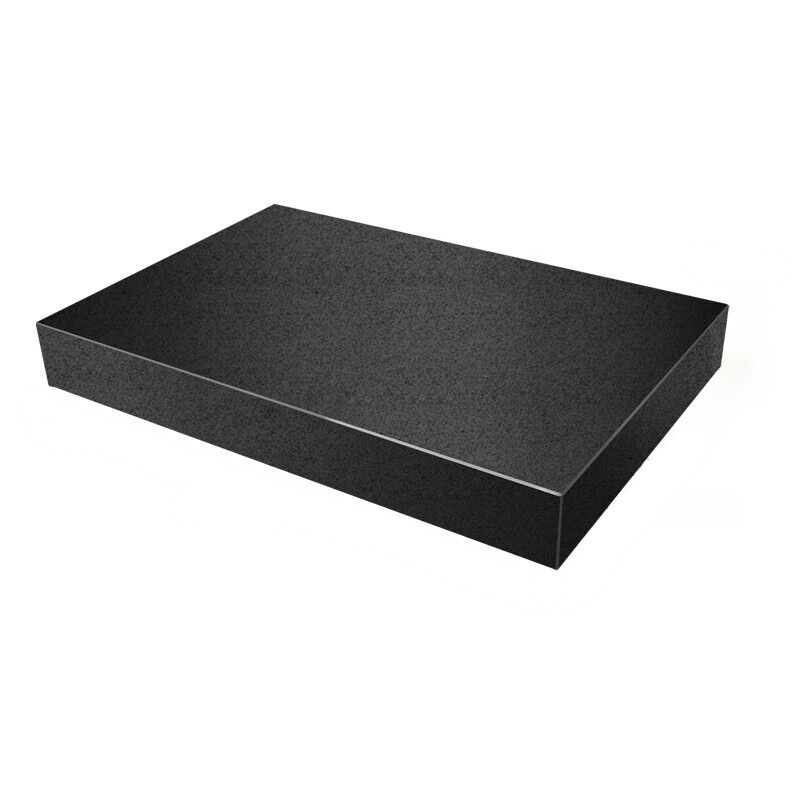

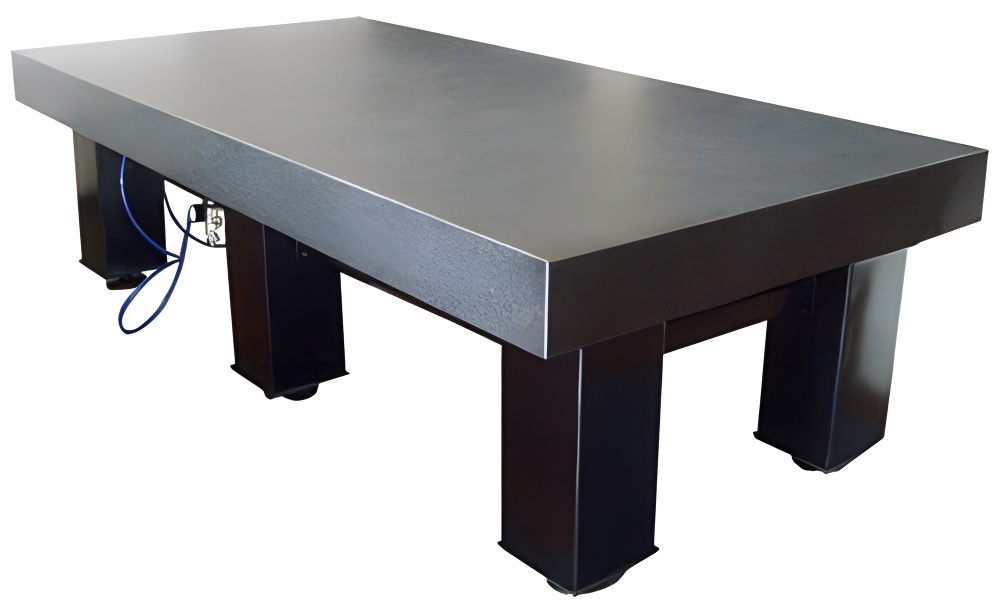

Precision Analysis And Application of Marble And Granite Inspection Platforms

The accuracy of marble inspection platforms is closely related to their grade, processing technology, and application scenarios, with differences in accuracy indicators under different standards. The following is a detailed analysis based on national standards and practical application scenarios:

I. Accuracy Grading in National Standards (GB/T 20428-2006)

According to Chinese national standards, marble platforms are divided into four grades—00, 0, 1, and 2—based on flatness error. The specific accuracy is as follows:

II. Core Factors Affecting Accuracy

1. Platform Size and Shape

• Larger sizes allow higher flatness error tolerances (e.g., for Grade 0 platforms: ≤0.001mm for 1000mm×1000mm, and ≤0.0025mm for 2000mm×2000mm).

• The accuracy of special-shaped platforms (e.g., circular, annular) requires individual calibration based on specific designs.

2. Processing Technology Limits

• Traditional grinding technology: Grade 00 platforms require diamond grinding discs (above 1000 mesh) combined with manual polishing, achieving a surface roughness of Ra≤0.1μm and flatness error within 0.0005mm.

• Ultra-precision machining (e.g., ion beam polishing): Laboratory-grade platforms can achieve accuracy below 0.0001mm but are extremely costly, limited to research purposes.

3. Environmental and Usage Conditions

• Temperature fluctuation: The thermal expansion coefficient of marble is approximately 1.2×10⁻⁶/°C, and a 10°C temperature difference can cause 0.0012mm deformation in a 1m platform.

• Vibration and load: Exceeding the platform's rated load (e.g., Grade 0 platforms recommend ≤50kg/m²) can lead to local depressions, potentially increasing errors by 0.002–0.005mm.

III. Comparison with International Standards (Taking ISO 8512 as an Example)

IV. Precision Limit Cases in Practical Applications

1. Scientific Research Field

• The reference platform of Germany's PTB (Federal Institute of Physics and Technology): Flatness error ≤0.0002mm (200mm×200mm), used for nanometer-level measurement calibration.

2. Industrial Field

• Semiconductor lithography stage: Adopts a granite+ceramic composite structure with flatness ≤0.001mm (1000mm×1000mm), combined with laser interferometers for real-time error compensation.

3. Routine Industrial Inspection

• Most factories use Grade 1 or 2 platforms, with actual inspection errors typically controlled within 0.005–0.01mm, meeting mass detection needs for automotive parts and electronic components.

V. Precision Verification and Maintenance Recommendations

1. Calibration Tools

• Grade 00 platforms require full-surface scanning using laser interferometers (accuracy ±0.0001mm) or coordinate measuring machines (CMM).

2. Maintenance Impact

• Regular grinding (recommended annually for Grade 00 platforms) maintains accuracy within the rated range. Long-term neglect of maintenance can cause wear to increase errors by 0.001–0.003mm/year.

Conclusion

The "true accuracy" of marble inspection platforms should be judged by combining grade, size, and application scenarios:

• Theoretical limit: Laboratory-grade platforms can reach below 0.0001mm (nanometer level), but popularity is low due to cost and technological constraints.

• Industrial standard: Grade 00 platforms achieve ≤0.001mm accuracy within 1m×1m, serving as the mainstream choice for precision inspection.

• Practical use: Environmental control (constant temperature, anti-vibration) and standardized maintenance can stabilize platform accuracy at 80%–90% of the rated value for the long term.
