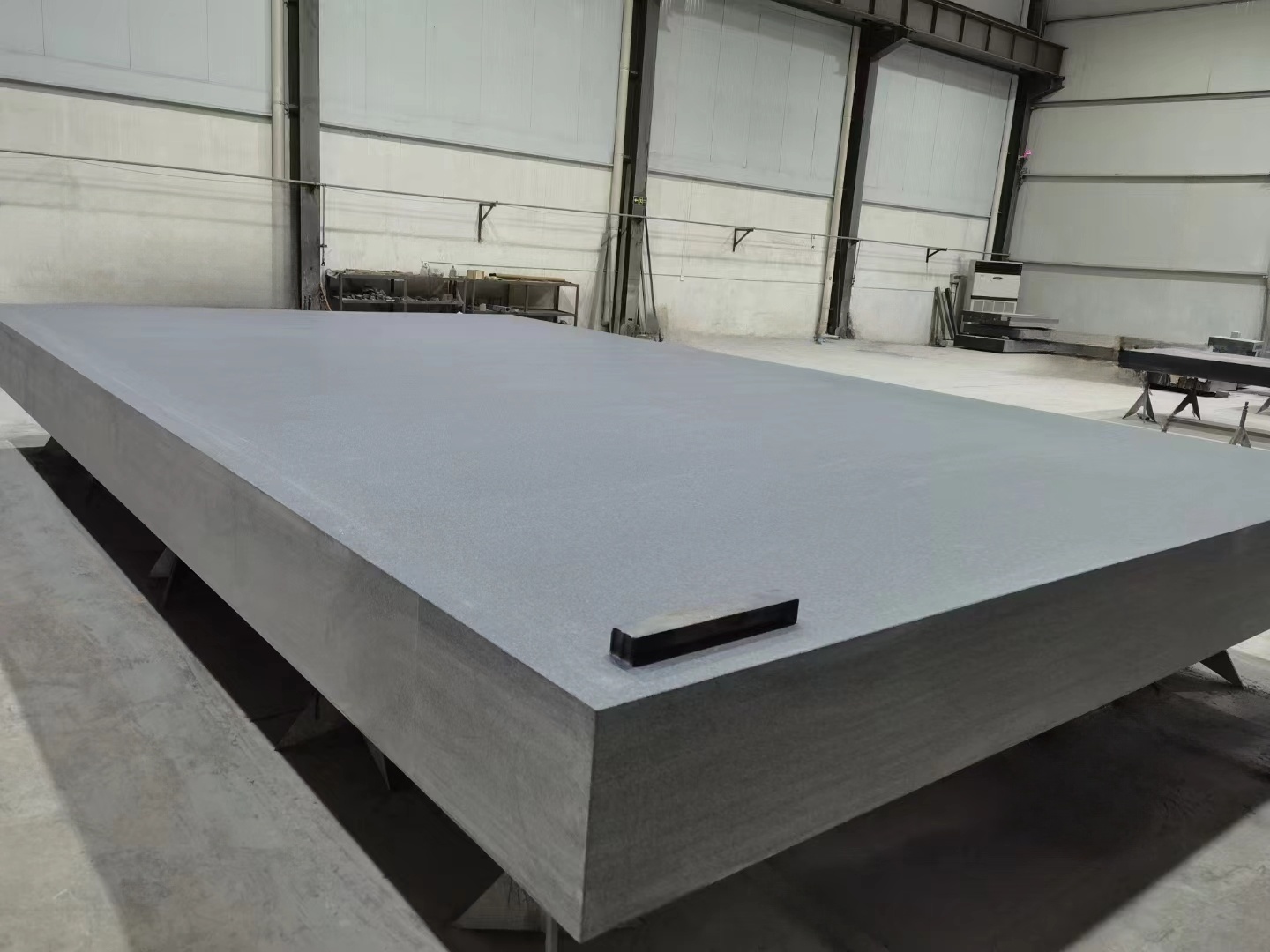

Marble/Granite Platform: The Cornerstone of Precision Manufacturing

Marble/Granite Platform: The Cornerstone of Precision ManufacturingCore Characteristics of Marble/Granite Platforms

          As a benchmark tool for precision measurement and industrial production, Marble/Granite platforms excel in accuracy, stability, and durability, leveraging their unique material properties and technological characteristics. The following details their core features from dimensions including material characteristics, precision performance, physical advantages, processing capabilities, and environmental adaptability:

I. Material Characteristics: Inherent Advantages of Natural Stone

1. Mineral Composition and Structure

Main components include pyroxene, plagioclase, olivine, biotite, and trace magnetite, forming a dense and uniform crystalline structure through hundreds of millions of years of natural aging, free from internal stress risks.The black luster originates from the fine arrangement of mineral particles, with low surface micro-roughness, making it suitable for precision contact measurement.

2. Physical Properties

• Hardness: Mohs 6–7 (superior to cast iron’s Mohs 4–5), with extremely strong wear resistance, unlikely to develop scratches or dents after long-term use.

• Compressive strength: 2290–3750 kg/cm², capable of bearing inspection loads of heavy workpieces (e.g., automotive molds, aerospace structural components).

• Thermal stability: Extremely low thermal expansion coefficient, with dimensional change <0.005mm/m in ±5℃ temperature difference, far exceeding metal materials.

3. Chemical Properties

• Corrosion resistance: Acid-base resistant (no chemical reaction within pH 2–12), non-rusting, suitable for humid, high-dust, or corrosive industrial environments.

• Non-magnetic: Free from electromagnetic induction, applicable to non-magnetic detection scenarios for precision devices like electronic components and semiconductor wafers.

II. Precision Performance: Core Indicators of Industrial-Grade Benchmarks

1. Flatness Accuracy

Complies with GB/T 4987 standard, with accuracy grades ranging from Grade 000 (highest) to Grade 3:

• Grade 000: Flatness ≤1×(1+d/1000) μm (d = diagonal length in mm), suitable for benchmark calibration in metrology laboratories.

• Grade 00/Grade 0: Flatness 2–4×(1+d/1000) μm, used for bases of precision machine tools and coordinate measuring machines (CMM).Through manual scraping (for Grade 00 and above), processing stress is eliminated, and micro-plane correction is achieved to ensure long-term geometric stability.

2. Measurement Repeatability

Working surface error ≤±0.5μm/m², repeatability deviation <1%, meeting international standards (e.g., ISO 10360) for high-precision benchmarks.

III. Physical Advantages: Properties Surpassing Metal Materials

1. Impact & Deformation Resistance

• When struck by heavy objects, only local micro-cracking occurs (depth <0.1mm), unlike cast iron platforms that may undergo overall deformation or accuracy failure.

• No plastic deformation; original accuracy restores immediately after long-term loading, requiring no recalibration.

2. Self-Lubrication & Low Friction

The natural micro-porous surface structure creates a "self-lubricating effect," with sliding friction coefficient ≤0.015, enabling smooth movement of tools (e.g., gauge blocks, dial indicators) without sticking.

3. Long Life & Maintenance-Free

Service life exceeds 50 years under normal use, requiring no regular oiling, rust prevention, or heat treatment. Maintenance costs are only 1/5 of metal platforms.

IV. Processing Capabilities: Diverse Functional Adaptation

1. Structural Customization

Can be processed into functional structures (T-grooves, V-grooves, dovetail grooves, threaded holes, etc.) to adapt to fixture, sensor, or laser equipment installation.Typical case: A Marble/Granite platform customized for semiconductor testing integrates a vacuum adsorption hole array, achieving ±2μm positioning accuracy.

2. Composite Component Manufacturing

Combined with metal parts (e.g., stainless steel inlays, aluminum alloy guides) to form hybrid structures, balancing stone stability and metal functionality. Examples:

• Granite base + steel guide rail pair for high-precision linear motion systems.

• Marble/Granite platform inlaid with temperature compensation sensors for real-time environmental correction.

V. Environmental Adaptability: Stability in Harsh Scenarios

1. Temperature & Humidity

• Operating range: -10℃–50℃ (recommended constant 20±2℃), humidity 30%–80% RH (no condensation), suitable for laboratories, workshops, and outdoor temporary detection.

• Maintains ±5% accuracy stability in extreme environments (e.g., Arctic 科考 equipment, tropical factories).

2. Vibration & Noise

High damping characteristics of natural stone (damping ratio 0.01–0.03) absorb >90% of environmental vibrations (e.g., machine tool sources), with noise attenuation >20dB, ensuring stability for optical measurements (e.g., laser interferometers).

VI. Industry Applications: Cross-Field Benchmark Value

Conclusion: The Cornerstone of Precision Manufacturing

With natural material stability, high-precision craftsmanship, and flexible structural design, Marble/Granite platforms have become indispensable benchmark tools in modern industry. From nanoscale research measurements to heavy industrial inspections, their characteristics meet full-dimensional needs from "micron-level precision control" to "decade-long life assurance," earning them the reputation of the physical benchmark origin of precision manufacturing.
