How to Select a Granite/Marble Inspection Plate Suitable for CNC Machine Tools

https://www.Granite/Marble-components.com，E-mail：Granite/Marblecomponents@163.com

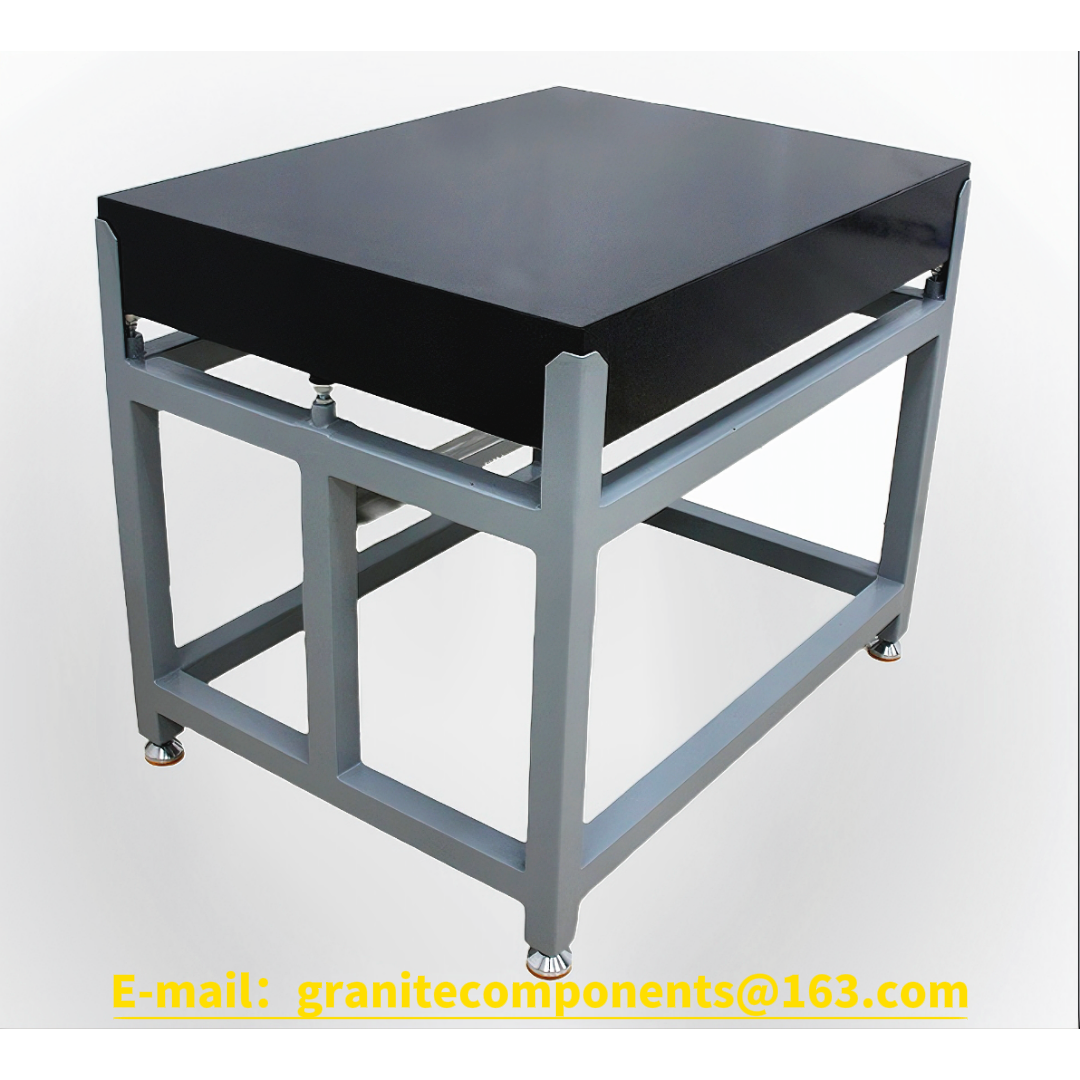

In the realm of precision machining, the selection of an appropriate Granite/Marble inspection plate for your CNC machine tool is of paramount importance. These plates serve as a stable and planar surface for the measurement and inspection of machined components, thereby ensuring production accuracy and quality. When selecting a Granite/Marble inspection plate for your CNC machine tool, the following key factors should be carefully evaluated:

1. Dimensions and Thickness

The dimensions of the Granite/Marble inspection plate must be compatible with the size of the component under inspection. Larger plates offer expanded operational space, while greater thickness enhances stability and resistance to warping. It is essential to consider the load-bearing capacity of the CNC machine tool and the weight of the workpiece to determine the optimal thickness.

2. Surface Flatness

Surface flatness is a critical parameter for precise measurements. Opt for plates that conform to industry flatness standards, typically specified in microns. High-grade Granite/Marble inspection plates should feature defined flatness tolerances to ensure measurement consistency and reliability.

3. Material Properties

Granite/Marble quality varies significantly across sources. Prioritize materials with high density, as they exhibit superior resistance to cracking and wear. The inherent quality of the Granite/Marble directly influences the service life and performance of the inspection plate.

4. Surface Finish

The surface finish of the Granite/Marble plate impacts both the adhesion of measuring instruments and the ease of maintenance. Polished surfaces are preferred for their smooth texture and low maintenance requirements, facilitating efficient cleaning and tool engagement.

5. Accessories and Functional Features

Evaluate additional features such as T-slots for workpiece clamping, leveling feet for stability enhancement, and included calibration services. These functional elements can significantly optimize the operational efficiency of the marble inspection plate.

Conclusion

Selecting an appropriate Granite/Marble inspection plate for your CNC machine tool necessitates a comprehensive assessment of dimensions, flatness, material properties, surface finish, and auxiliary features. By making an informed choice, you can ensure precise dimensional verification and enhance overall machining productivity.
